Skyfort Playset Installation – Day 24 (4/22)

So Thursday night I took a look at what was going on the next day and decided to take the day off of work. Building the playset was not the only reason, but it was definitely one factor. Also the kids were off school (due to Good Friday) so I thought it would be nice to spend some time with them. And the weather called for rain pretty much non-stop starting Friday afternoon and continuing for the next 4-5 days.

I went out about 9 a.m. and started on the next steps, which involved constructing the swingset portion. The kids were excited (even more so than usual!) because Step 84 got to use the coveted “A1″ piece. A1 is the swingset beam and is naturally the biggest piece, so the whole time we’ve been building this they’ve been looking forward to when we could use A1.

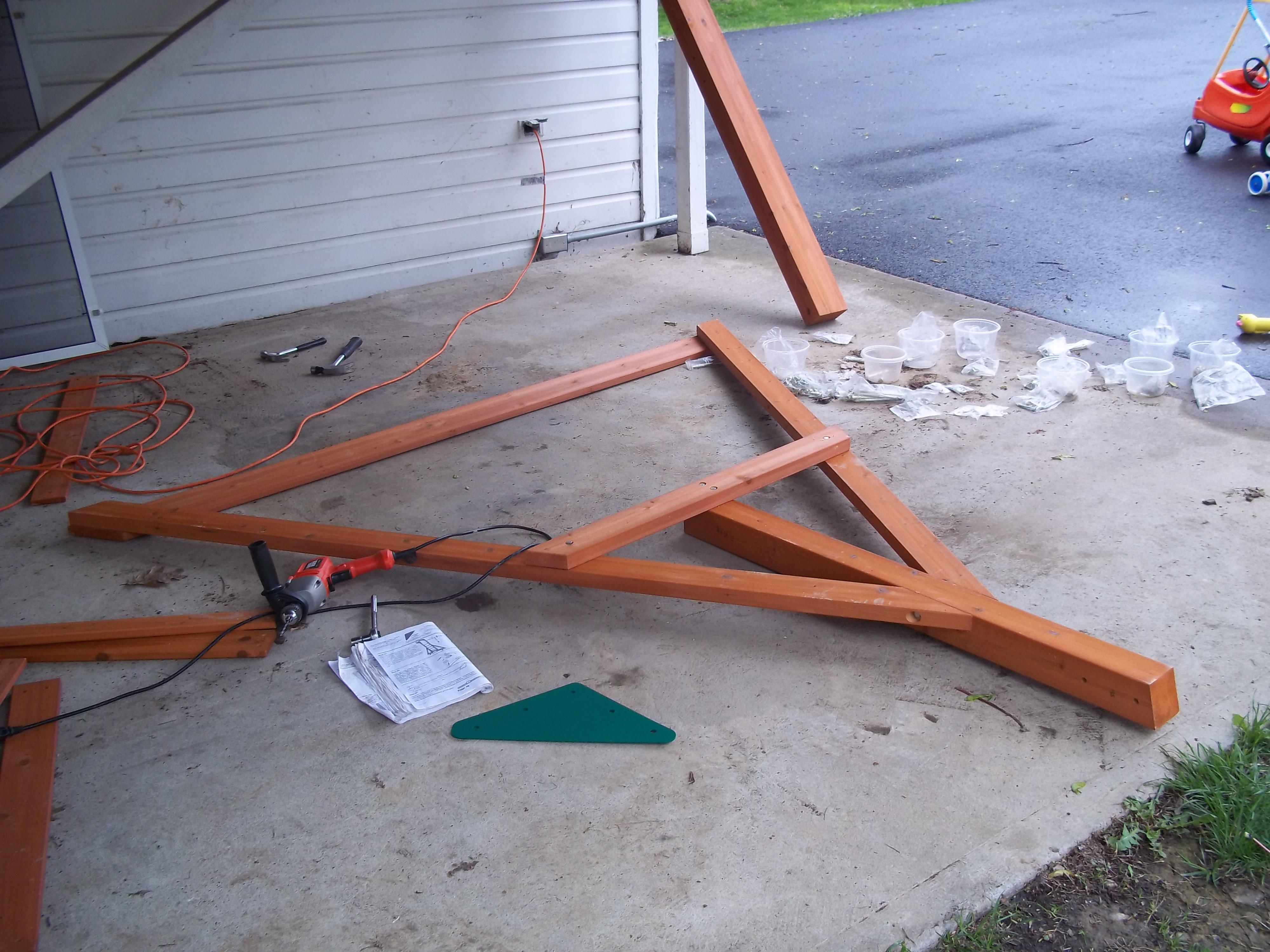

Here’s the A-beam part

And here’s that part attached to A1. It wasn’t that heavy but definitely useful to have 2 people carrying it.

It was tricky getting it level (same as with the monkey bars on the other side) because we had dug down a bit to place and level the clubhouse section. So we had to dig around to get it level. Our neighbors (who work at the school and were off for Good Friday) were also out trying to get some mulching in before it rained. I commented “Beautiful day for some outside work!!” :-)

Once the swingset beam was set into place, we had to construct and place the crow’s nest area, which sits on top of that big beam. And here we ran into a problem.

You can see the green “Y30-40G” metal braces, with the holes on the main clubhouse that the brace is supposed to attach to. The problem comes in that there are no holes on the board BEHIND that. I looked back on the steps where those boards were attached, and I still think that I did it correctly. You can see below the other left to right beam one of those spike T-nuts. Back in Step 52 we had to put those T-nuts in to “be used in a future step”. Originally I thought I had maybe put those nuts in the wrong place, but I don’t think so. I’m not counting that as a mistake by me. I ended up just drilling through those back boards, attaching spike nuts on the back end, and putting the bolts in.

Next step was attaching the swing hangers to the beams. The next problem is that the countersunk holes were not big (or deep) enough so the fender washers would fit in those holes. The instructions were (wait for it, wait for it) pretty confusing. The text of the instructions (Step 91) just say flat washers, lock washers and lock nuts, but the picture also shows a fender washer. The countersunk holes looked like they fit the fender washers, but it was just SLIGHTLY not big enough. Also I couldn’t get all those washers in and still have enough of the bolt to attach the nut to.

I ended up just using a drill to kind of widen the hole.

After putting in the floor boards of the crow’s nest, the next problem was that we ran out of flat washers. We had used extra flat washers earlier on because the truss bolts were not snug with only 1 washer on them. So I sent Carolyn to Lowe’s to get some more washers.

So that meant we had to skip Step 95 and 96, and move on to Step 97 – putting in the balusters for the crow’s nest. After that was done, we started putting the swings on (Step 102), because all the steps in between also needed those washers. We couldn’t put the glider on because we were missing some fender washers, but we did get the other 2 swings on.

Before too long Carolyn came back with the flat washers and we were able to get those other steps done. We finished the crow’s nest balusters and put in the telescope

Going back to the earlier paragraph about the spike T-nuts that were put in “for a future step”, we found out what that was for on Step 99 – putting in the metal ladder rails to go up to the Crow’s Nest. That was very tricky to do as the holes did not really match up. I ended up having to really wiggle them in to get them to “catch” on the nuts but eventually I was able to get it in.

Last few steps were attaching the metal grips on various places. Here I am putting the grips on one end of the monkey bars – they went in on both ends of the monkey bars, the top of the rock wall, and the top of the ladder.

I was able to put all of them in except the right side of the ladder, since that one required a truss bolt, and I didn’t have any of those left. By now it was about 5 pm and Carolyn said something like “You know, even though it’s been raining most of the day, at least it hasn’t been raining very hard!”

Cue massive thunderstorms and heavy rain! :-) I REALLY wanted to finish things up and get the slide on, but alas it was not meant to be. I worked on it some but just didn’t want to mess things up, so I decided to save it for another day. Plus, using my power drill (with the cord running through pools of standing water) in a thunderstorm didn’t seem like QUITE the best idea….

Nice picture of me taken from the dryness of inside. Getting close!!

Day 24 time: 8.5 hours
Total time: 48.5 hours
Mistakes made: 0 today (17 total)
Steps completed: 83-102 (out of 103)
